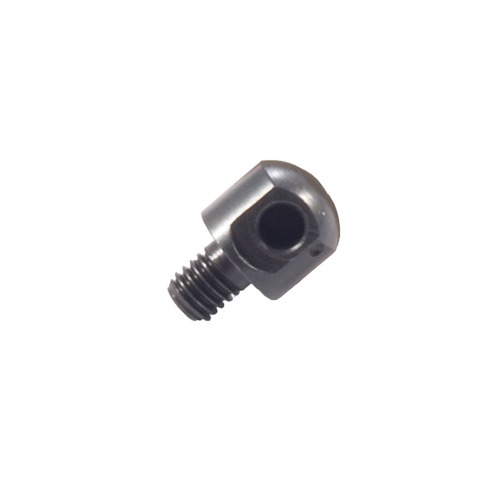

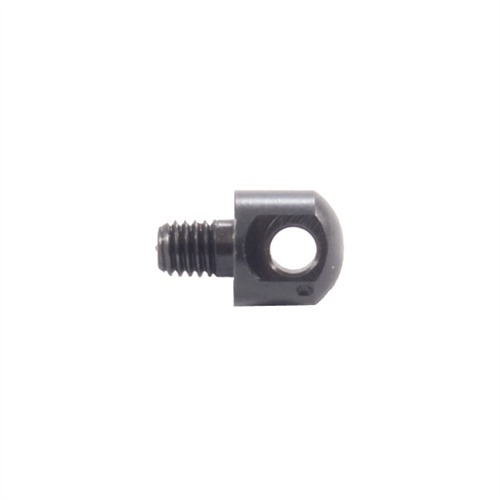

Steel Bipod/Sling Stud screws directly into underside of handguard to provide a rock-solid mounting point for a Harris-style bipod. Also serves as an ultra-secure, heavy-duty sling swivel mount.
SPECS: 12L14 steel, black. Approximately 5⁄8" (15mm) OAL, threaded portion ¼" (6mm) long. 10-32 thread. Fits Yankee Hill Customizable series free-float handguards only.
Plus...
Vis en acier de bipied/Sling Stud directement en dessous du garde-main de fournir un montage solide point pour un bipied Harris-style. Sert également un pivotant toile ultra-sécurisé, lourds.
FICHE
: 12L 14 acier, noir. Environ 5 ⁄ 8"(15mm) OAL, fileté portion ¼ po (6mm) de long. 10-32 fil. S'adapte Yankee Hill personnalisable série flottant handguards seulement.
Plus...
Évaluations client de YANKEE HILL MACHINE CO., INC. BIPOD/SLING STUD
Nombre d'évaluations: 5
De brownells.com: 5
Note moyenne: 5
Get for the YHM Customizable Forearm(14/03/2011)
This is the CORRECT stud for the Yankee Hill Customizable Forearm tube. Get this one!!!
Sling Stud by YHMC(12/05/2015)
I just drilled and tapped a free float tube (I bought it here) 5/12/15. I used a 5/32 bit (very close to a #21 drill bit) and took my time with my step bit in my cordless drill on low speed. I tapped the hole with a 10-32 tap, and it worked great. I put a couple (2) small washers against the outside of the tube to take up the shoulder where the stud is not threaded. A drop of medium locking fluid on the stud and in the hole. Good to go. I preferred the tapping the hole, snugging of the stud, and using locking fluid on this stud as opposed to putting a nylon-locking nut on the inside, but that's just me. Actually, a guy could do both--snug it up, and then put a nut on it from the inside of the float tube. The threaded portion is about 1/4", or about .250 inch.
I needed studs for my Mossberg 535 barrels. These worked perfect. The ones labeled for the Mossberg on this site are $4.99 and these are only $1.99 and have longer threads for better streangth. Win win for me!
Good quality, priced right(19/02/2020)
I drilled and tapped a free float handguard and screwed one of these in to mount a bipod to. Works great and is cheaper than most others Iâve seen.
Référence: 100005267 YANKEE HILL MACHINE CO., INC. BIPOD/SLING STUD Ref Fabricant: YHM262 Vis en acier de bipied/Sling Stud directement en dessous du garde-main de fournir un montage solide point pour un bipied Harris-style. Sert également un pivotant toile ultra-sécurisé, lourds.
9.9EUR239,90 €
*
Livraison en env. 21-30 jours. plus de 10 pces. dans l'entrepôt US.
