MOSSBERG .22 RIMFIRE M22 SUPER SIDE SCOPE MOUNT

100001258

Update Your Vintage Rimfire With Optics Of Choice

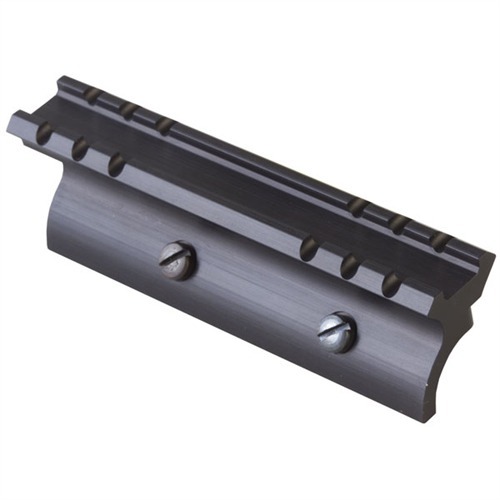

Weaver-style rail conforms to receiver curvature and attaches to existing mounting holes, centering any diameter scope directly over the barrel. Lets you mount full-size scopes and red-dot optics. Provides enough clearance to keep original rear sights in place. Easy installation: remove bolt cover, if present, to allow bolt to clear mount; add rings and scope of choice.

SPECS: Aluminum, black anodized finish. Rail measures 4-7/16" (11.3cm) long, 9/16" (1.4cm) high. Fits following models with side-tapped receiver: 26B, 26C, 42A, 42B, 42C, 42M (all variants), 43, 44B, 44US (all variants), 46A, 46B (all variants), 46M (all variants), and most Wards-Westernfield rifles (made by Mossberg) with side-tapped holes measuring 1-5/8" (4.1cm) center-to-center.

Plus...

Mettre à jour votre Rimfire Vintage avec une optique de choix

Rail de type Weaver est conforme à la courbure du récepteur et s'attache à des trous de montage existants, n'importe quelle étendue de diamètre de centrage directement sur le Canon. Vous permet de monter des étendues pleine grands et red dot optique. Offre suffisamment d'espace pour garder l'originales curiosités arrière en place. Installation facile : Enlevez boulon, le cas échéant, permettre à boulon dégager le Mont ; Ajouter les anneaux et champ d'application de choix.

SPECS : en aluminium, anodisé noir finition. Rail mesure 4-7/16"(11,3 cm) long, 9/16" (1,4 cm) de haut. S'adapte suivant les modèles avec récepteur côté-taraudé : 26 b, 26 C, 42 a, 42 b, 42 C, 42 M (toutes les variantes), 43, 44 b, 44US (toutes les variantes), 46 a, 46 b (toutes les variantes), 46M (toutes les variantes) et la plupart des pupilles-Westernfield fusils (faites par Mossberg) avec trous taraudés de côté 1-5/8"(4,1 cm) axe-axe de mesure.

Plus...

Évaluations client de HAVLIN M22 SCOPE MOUNT

Nombre d'évaluations: 12
De brownells.com: 12
Note moyenne: 5

great product (29/10/2009)

this mount was a direct replacement product was exactly as described

Good Product!!!! (19/11/2009)

This mount fit perfectly on the Mossberg 44US, the holes on the Mossberg were pre-drilled so it was installed in a matter of minutes. Installing a scope with this mount was very simple. The product is manufactured well and does NOT feel cheap.

Good product (29/05/2011)

Does exactly what it's supposed to do at a good price.

Easy to install (02/02/2012)

This worked perfectly, and installed in about 2 minutes. Make sure you have Weaver style scope rings for proper mounting to the rail. Couldn't be happier!

Solid and Well made (06/06/2012)

Fitted to my mossberg 45A perfectly even tho it is not listed only had to remove a grub screw

Jum

Great Product (10/06/2012)

Bought this for a Stevens mdl 87 (branded Western Field).
This piece bolted right on, using factory drilled and tapped holes. It fit perfect and is very stout. I am very happy with it!!

I would buy this product again and again (08/07/2012)

Bought this mount for a Wards/Mossberg Model 41 22. Mounted a BSA Sweet 22 scope and sighted it in at the range. Proceeded to knock chickens down at 200 yards. What a rifle. Couldn't have done it without your mount. Thanks

Havlin M22 scope mount on old Savage 6A (04/12/2014)

I bought an old pre-war Savage 6A about two months ago at a local gun show(always was kind of interested in the old "gill guns" ;-) ) that was drilled with scope mounting screws that were approximately 1-5/8" apart. Not knowing much about the scope mounts that fit this type of rifle, I first bought an old Weaver N2 mount for it off of GunBroker (I read somewhere on line that this was the type of scope mount that was most often used on these types of guns). Well, the N2's scope mounting holes weren't even close to fitting. I saw this mount (Havlin M22) while looking for something else on the Brownell's website, and the fact that it had the screw mounting holes 1-5/8" apart and basically appeared to be similar to the old Weaver N series of scope mounts intrigued me. This mount fit perfectly! I'm even also quite surprised that the two hex head mounting screws that came with it fit without having to be modified somehow (I read sometimes that the hex head mounting screws that come with the Weaver have to be dremeled shorter to fit). So if you have an old Savage 6A .22 laying around that you want to scope and it has scope mounting holes 1-5/8" apart on it, I would seriously think about giving this mount a try!

Wards Western Field 47C (04/10/2015)

Fit my father's old Wards Western Field 47C perfectly. Two screws and a couple of minutes and it was on like a glove.

Mounted on 46m mossberg 22 rifle (13/12/2017)

Works good . You can't go wrong. Fast shipping. Thanks JIM.

Fits Mossberg Model 42 vintage 1935 (11/07/2018)

Brings an old gun to life. The old school iron sights were beat to death on this old truck gun. Needed to scope it and this bolted right on with no problem.

Weaver Mount (13/06/2020)

The quality and fit are perfect. I didn't pay attention that this is a Weaver mount and I assumed it was Picatinny. My cheap Picatinny mount scope (CVLIFE 2.5-10x40e ) does not have movable mounting screws and they do not align with screw cuts on this rail. The scope still fits, but the screws do not go into the screw cutouts. I will probably just buy another scope that has either movable mounts or is Weaver ready. I am very happy to be able to place a scope on my beloved Mossy 46.

Lire 12 plus d'avis sur brownells.com

49.9 49.9 1 EUR

Référence: 100001258
HAVLIN M22 SCOPE MOUNT
Ref Fabricant: NONE M22 Monture

49.9 EUR 17 49,90 € *

Livraison en env. 21-30 jours.
plus de 10 pces. dans l'entrepôt US.

Caractéristiques: Couleur: Matte Noir Manufacture: Mossberg Matériaux: Aluminum Modèle: Universal Rifles, Universal Nombre d'Embases: 1-Pièce Style: Weaver

Ajouter à la Liste d'Envies

Description

M22 Scope Mount

Caractéristiques

Couleur: Matte Noir Manufacture: Mossberg Matériaux: Aluminum Modèle: Universal,Universal Rifles Nombre d'Embases: 1-Pièce Style: Weaver Poids du colis: 0,068kg Hauteur: 3mm Largeur: 107mm Longueur: 173mm

Traduction automatique

M22 Monture

Update Your Vintage Rimfire With Optics Of Choice

Plus...

Mettre à jour votre Rimfire Vintage avec une optique de choix

Plus...

Évaluations client de HAVLIN M22 SCOPE MOUNT

Nombre d'évaluations: 12
De brownells.com: 12
Note moyenne: 5

great product (29/10/2009)

this mount was a direct replacement product was exactly as described

Good Product!!!! (19/11/2009)

Good product (29/05/2011)

Does exactly what it's supposed to do at a good price.

Easy to install (02/02/2012)

This worked perfectly, and installed in about 2 minutes. Make sure you have Weaver style scope rings for proper mounting to the rail. Couldn't be happier!

Solid and Well made (06/06/2012)

Fitted to my mossberg 45A perfectly even tho it is not listed only had to remove a grub screw

Jum

Great Product (10/06/2012)

Bought this for a Stevens mdl 87 (branded Western Field).
This piece bolted right on, using factory drilled and tapped holes. It fit perfect and is very stout. I am very happy with it!!

I would buy this product again and again (08/07/2012)

Havlin M22 scope mount on old Savage 6A (04/12/2014)

Wards Western Field 47C (04/10/2015)

Fit my father's old Wards Western Field 47C perfectly. Two screws and a couple of minutes and it was on like a glove.

Mounted on 46m mossberg 22 rifle (13/12/2017)

Works good . You can't go wrong. Fast shipping. Thanks JIM.

Fits Mossberg Model 42 vintage 1935 (11/07/2018)

Brings an old gun to life. The old school iron sights were beat to death on this old truck gun. Needed to scope it and this bolted right on with no problem.

Weaver Mount (13/06/2020)
