Tells size, threads-per-inch, diameter, length, tap series, body drill size, and tap drill for machine screws; use to check size of wood and sheet metal screws plus standard rivets. Covers all standard sizes, including 6-48. Use to cut unhardened screws to length, straighten bent screws or battered threads.
SPECS: Hardened steel, satin chrome plated. 3" (7.6cm) x 5" (12.7cm). With instructions. U.S. Thread Model - Checks #1 through 5/16" in NC, NS, and NF threads. 3" (7.6cm)- x 5" (12.7cm). Metric Thread Model - Gives diameter and length in inches and mm, pitch in mm, plus tap and clearance drills for metric screws from 2mm to 7mm.
Plus...
Identifie des Threads Plus donne percer & Tap tailles
Indique la taille, les filetages par pouce, le diamètre, la longueur, la série de tarauds, la taille du foret du corps et le taraud pour vis à métaux ; utiliser pour vérifier la taille des vis à bois et à tôle ainsi que des rivets standard. Couvre toutes les tailles standard, y compris 6-48. Utiliser pour couper des vis non durcies à longueur, redresser des vis tordues ou des filetages endommagés.
Fiche : durcie en acier, satin chromé. 3"(7,6 cm) x 5" (12,7 cm). Avec des instructions. Modèle de filetage américain - vérifie 1 à 5/16" avec fils NC, NS et NF. 3"(7,6 cm) - x 5" (12,7 cm). Modèle de filetage métrique - donne diamètre et la longueur en pouces et en mm, hauteur mm, ainsi que des exercices robinet et dégagement de vis micrométriques de 2 mm à 7 mm.
Plus...
Évaluations client de BROWNELLS U.S. SCREW CHEK'R
Nombre d'évaluations: 10
De brownells.com: 10
Note moyenne: 5
A must have if you have a box of screws(12/12/2018)
A huge time saver when you are looking for that screw in the jar of many to fit that rebuild/repair of an old gun.
Neat device(29/05/2020)
I bought this to match the US Screw Check'r. It's a nice tool to have to match up thread and diameter sizes, especially since many guns these days are metric. I haven't used it a lot, but it has come in handy.
Must have!(14/06/2010)
This is a must have for the shop. Never again guess what size screw something is. Well made and easy to use. Use the guide hole first, and then check what size thread it has.
Good quick method to check U.S. Screws(11/08/2010)
Easey to uses, covers standard screws
This Thing Works(21/01/2012)
It is amazing how such a simple product can be so useful. It is well-made, very accurate and looks as though it will be very durable. I used it to check screw sizes for a Marlin 1895G. The customer had partially stripped two screw holes while reassembling his rifle after cleaning it. I used this gauge to determine the thread pitch and screw sizes, cleaned up the stripped holes with the correct plug taps, reassembled the rifle and the customer was thrilled. Thanks, Brownells.
This is excellent!(23/10/2014)
This is a really nice product, not some import junk. This will last a lifetime, and it's a USA made product. This will definitely help me out with screws.
Outstanding! ð(29/11/2014)
This is a really great tool, it's not flimsy it's stout and if you use it properly it will last forever, I use it all the time, I recommend it to everyone!
Fantastic(16/03/2017)
No cons. been looking for this all my life! Saves precious time searching for the right screw size and thread count. Also tap and drill sizes and more! Huge time saver.
A must have if you have a box of screws(12/12/2018)
A huge time saver when you are looking for that screw in the jar of many to fit that rebuild/repair of an old gun.
Nice addition to the toolbox(24/03/2020)
I actually bought this on a whim, as I'd been using thread gauges, a mic, and eyeballing screws for years. Should have sprung for it years ago. Well made, steel, with many standard and not-so options for measuring screw pitch, diameter, length, and more. Now I'll have to get the metric version.

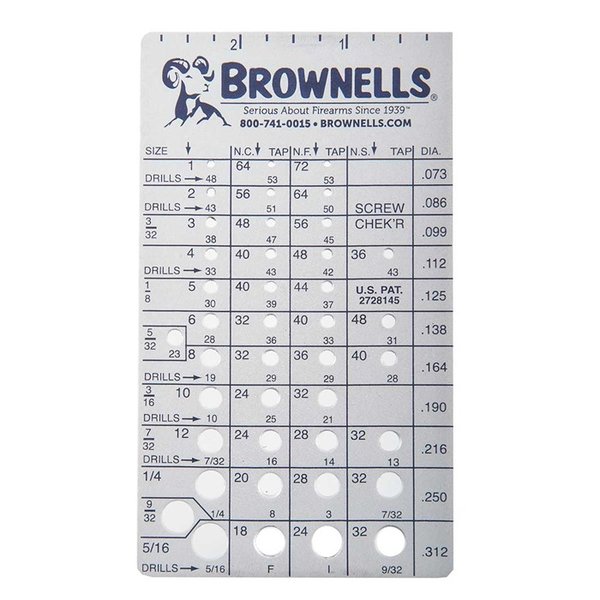

Référence: 080670001 BROWNELLS U.S. SCREW CHEK'R Ref Fabricant: 02110 Indique la taille, les filetages par pouce, le diamètre, la longueur, la série de tarauds, la taille du foret du corps et le taraud pour vis à métaux ; utiliser pour vérifier la taille des vis à bois et à tôle ainsi que des rivets standard. Couvre toutes les tailles standard, y compris 6-48. Utiliser pour couper des vis non durcies à longueur, redresser des vis tordues ou des filetages endommagés.
19.9EUR20419,90 €
*
Livraison en env. 21-30 jours. plus de 10 pces. dans l'entrepôt US.
Poids du colis: 0,159kgHauteur: 5mmLargeur: 102mmLongueur: 178mm
Référence: 080670002 BROWNELLS METRIC SCREW CHEK'R Indique la taille, les filetages par pouce, le diamètre, la longueur, la série de tarauds, la taille du foret du corps et le taraud pour vis à métaux ; utiliser pour vérifier la taille des vis à bois et à tôle ainsi que des rivets standard. Couvre toutes les tailles standard, y compris 6-48. Utiliser pour couper des vis non durcies à longueur, redresser des vis tordues ou des filetages endommagés.
24.9EUR3524,90 €
*
Livraison en env. 21-30 jours. plus de 10 pces. dans l'entrepôt US.
